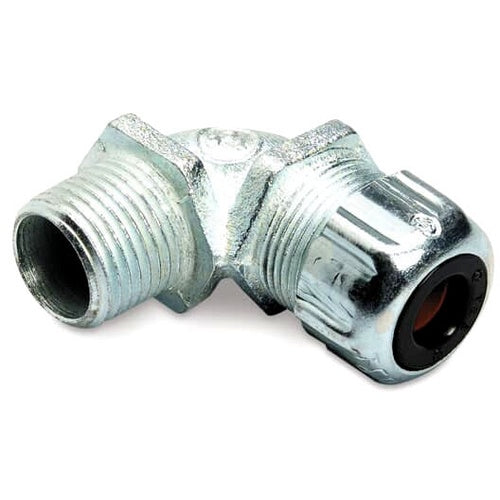

T&B 2254 1" 90D Liquidtight Cord Connector .375-.500

Overview

T&B 2254 1" 90D Liquidtight Cord Connector .375-.500

Product Specifications

• UPC: 78621002254
• Additional Information: ENVIRONMENTAL CONDITIONS WATER TIGHT; OPERATING TEMPERATURE 105 DEG C
• Catalog Number: 2254
• Type: 90 DEG
• Thread Size: 1 INCH
• Material: STEEL BODY/GLAND NUT/GRIP, NEOPRENE BUSHING
• Cord Size: 0.375 TO 0.5 INCH
• Size: 1-3/8 INCH DIA
• Approval: UL, CSA
• Application: DRY/HAZARDOUS/WET LOCATION, LIQUID TIGHT, STRAIN RELIEF
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.375 TO 0.500 INCH, MALLEABLE IRON.
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Type; Steel Body/Gland Nut/Grip, Neoprene Bushing Material; 1-3/8 Inch Dia Size; UL, CSA Approval; Dry/Hazardous/Wet Location, Liquid Tight, Strain Relief Application; 1 Inch Thread Size; 0.375 to 0.5 Inch Cord Size; Environmental Conditions Water Tight; Operating Temperature 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022543
• SKU Name: t&b 2254

Resources

• Manufacturer Spec Sheet
