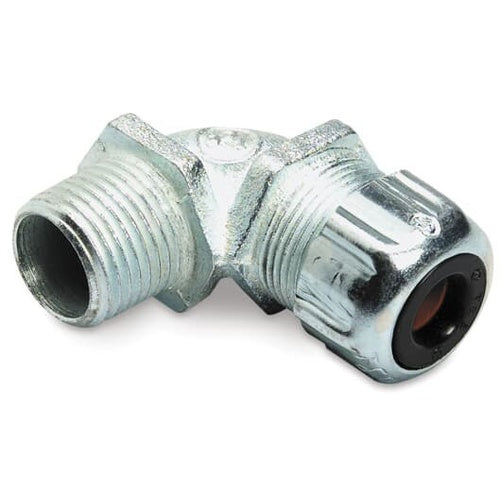

T&B 2271 3/4" 90D Liquidtight Cord Connector .250-.375

Overview

High durability for extended lifespan, Designed for optimal performance in high-stress environments, Compliant with industry standards for safety and reliability

Product Specifications

• UPC: 78621002271
• Application: Dry/Hazardous/Wet Location
• Additional Information: Construction Feature Watertight; Operating Temperature 105 Deg C
• Catalog Number: 2271
• Model: 2200
• Type: 90 Deg
• Thread Size: 3/4 Inch
• Material: Malleable Iron Body, Steel Gland Nut, Neoprene Bushing
• Cord Size: 0.25 to 0.375 Inch
• Size: 1-3/8 Inch Dia
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 3/4 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.250 TO 0.375 INCH, MALLEABLE IRON
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Type; Malleable Iron Body, Steel Gland Nut, Neoprene Bushing Material; 1-3/8 Inch Dia Size; UL, CSA Approval; Dry/Hazardous/Wet Location Application; 3/4 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; Construction Feature Watertight; Operating Temperature 105 Deg C; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022710
• SKU Name: T&B 2271
