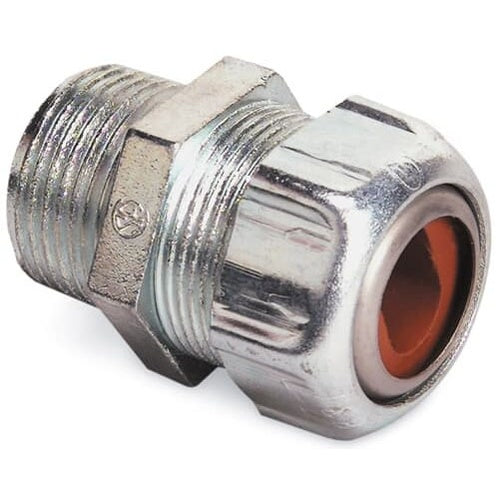

T&B 2438 1" Watertight Connector .44X.73-.565X.855

Overview

High durability for extended service life, Designed for easy installation and maintenance, Corrosion-resistant finish for enhanced longevity

Product Specifications

• UPC: 78621002438
• Used On: Oval Service Entrance Cable
• Catalog Number: 2438
• Type: Gland, Tapered Thread
• Minimum Opening: 0.44 Inch x 0.73 Inch
• Maximum Opening: 0.565 Inch x 0.855 Inch
• Trade Size: 1 Inch
• Constructional Feature: Watertight, Oil Resistant, Sunlight Resistant
• Material: Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing
• Approval: UL, CSA
• Catalog Description: WATERTIGHT CONNECTOR FOR OVAL CABLE, HUB SIZE 1 INCH, DIE CAST ZINC BODY WITH NEOPRENE BUSHING, OVAL CABLE RANGE MAXIMUM .565 X .855 INCH, MINIMUM .440 X .730 INCH
• Category: Service Entrance Cable Fittings
• Full Technical Description: Gland, Tapered Thread Type; Die-Cast Zinc Body, Zinc Electroplated Chromate Coated Steel Gland, Passivated Stainless Steel Retaining Ring, Molded Neoprene Bushing Material; Oval Service Entrance Cable Used on; 0.44 Inch X 0.73 Inch min. Opening; 0.565 Inch X 0.855 Inch Max. Opening; UL, CSA Approval; 1 Inch Trade Size; Watertight, Oil Resistant, Sunlight Resistant
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210024387
• SKU Name: T&B 2438
