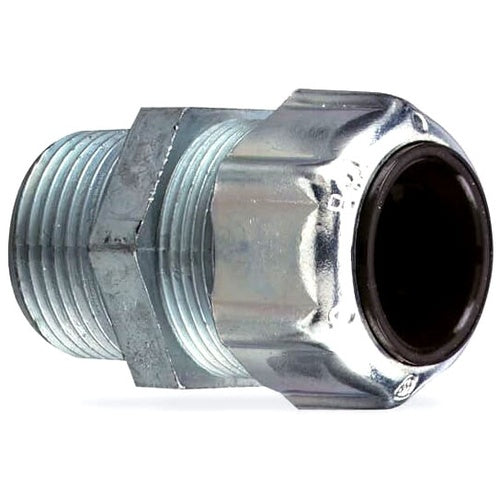

T&B 2546 1" Cord Connector .750-.880 Range

Overview

High load capacity for demanding industrial tasks, Corrosion-resistant finish for longevity, Easy installation and maintenance, Compatible with a variety of industrial systems

Product Specifications

• UPC: 78621002546
• Application: Dry/Wet/Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 63/64 Inch; Temperature Rating 105 Deg C
• Catalog Number: 2546
• Brand Name: T&B
• Type: Straight Male
• Thread Size: 1 Inch
• Material: Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 0.75 to 0.875 Inch
• Size: 1-11/16 Inch Diameter x 1-7/8 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1 INCH, STRAIGHT, CORD RANGE 0.750 TO 0.875 INCH, DIE CAST ZINC
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 1-11/16 Inch Diameter X 1-7/8 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 1 Inch Thread Size; 0.75 to 0.875 Inch Cord Size; Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 63/64 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210025469
• SKU Name: 2546
