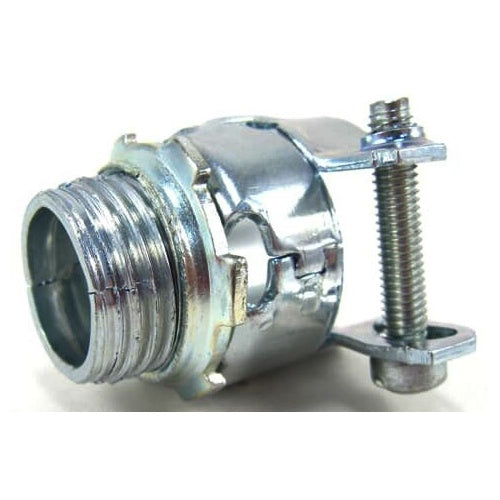

T&B 256 1" Squeeze Connector Straight

Overview

T&B 256 1" Squeeze Connector Straight

Product Specifications

• UPC: 78621000256
• Installation: Squeeze
• Throat Type: Non-Insulated
• Material: Malleable Iron
• Standard Package: 25
• Approval: UL 514B, CSA C22.2
• Catalog Number: 256
• Type: Straight
• Trade Size: 1 Inch
• Knockout Size: 1 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 1.25 to 1.375 Inch
• Length: 1-5/8 Inch
• Catalog Description: SQUEEZE CONNECTOR, STRAIGHT, TRADE SIZE 1 INCH, KNOCKOUT SIZE 1 INCH, CABLE RANGE 1.250 TO 1.375 INCH, MALLEABLE IRON
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Malleable Iron Material; 1-5/8 Inch; Squeeze Installation; UL 514B, CSA C22.2 Approval; 25 Standard Package; 1 Inch Trade Size; 1 Inch Knockout Size; 1.25 to 1.375 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210002569
• SKU Name: t&b 256

Resources

• Manufacturer Spec Sheet
