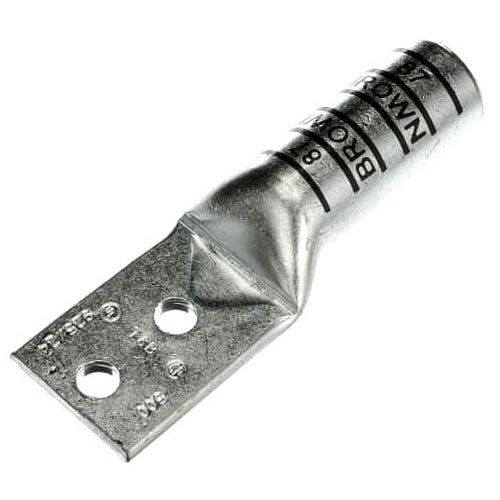

T&B 256-30695-1119 Copper Tin Plated 2-Hole Lug Long Barrel 500 3/8B Brown

Overview

T&B 256-30695-1119 Copper Tin Plated 2-Hole Lug Long Barrel 500 3/8B Brown

Product Specifications

• UPC: 78621016908
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Brown
• Die Index: 87
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 5 Inch
• Approval: UL, CSA
• Catalog Number: 256-30695-1119
• Model: 256-30695
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL (Code), 400 KCMIL (Flex), 925/24 (Flex), 350/373 KCMIL (Flex)
• Barrel Type: Long, Straight
• Pad Size: 1.93 Inch L x 1.61 Inch W x 0.22 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 500 KCMIL, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE COLOR CODE BROWN, DIE CODE 87
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Brown Color; 5 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 500 kcmil (Code), 400 kcmil (Flex), 925/24 (Flex), 350/373 kcmil (Flex) Conductor Size; 3/8 Inch Stud Size; 87 Die Index; 1.93 Inch L X 1.61 Inch W X 0.22 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; 256-30695 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210169088
• SKU Name: t&b 256306951119
