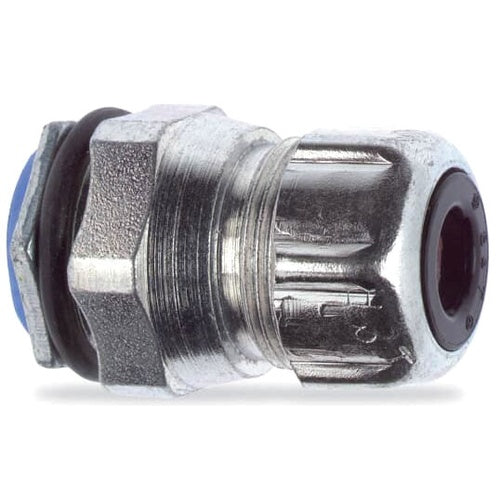

T&B 2632 1/2" Straight Liquidtight Chase Connector .250-.375

Overview

High durability for extended service life, Precision engineering for optimal performance, Easy installation and maintenance

Product Specifications

• UPC: 78621002632
• Application: Hazardous Location
• Additional Information: RoHS Compliant; Constructional Feature Liquidtight; Temperature Rating 105 Deg C
• Catalog Number: 2632
• Brand Name: T&B
• Type: Straight
• Thread Size: 1/2 Inch
• Material: Steel (Body), Nylon Insulated (Throat), Neoprene (Bushing)
• Cord Size: 0.25 to 0.375 Inch
• Size: 1-1/16 Inch Diameter x 1-5/8 Inch Length
• Approval: UL, CSA
• Catalog Description: CHASE LIQUIDTIGHT STEEL CORD CONNECTOR, STRAIGHT, 1/2 INCH, CORD RANGE 0.250 TO 0.375 INCH
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Steel (Body), Nylon Insulated (Throat), Neoprene (Bushing) Material; 1-1/16 Inch Diameter X 1-5/8 Inch Length Size; UL, CSA Approval; Hazardous Location Application; 1/2 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; CHASE[R] Brand; RoHS Compliant; Constructional Feature Liquidtight; Temperature Rating 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210026329
• SKU Name: T&B 2632
