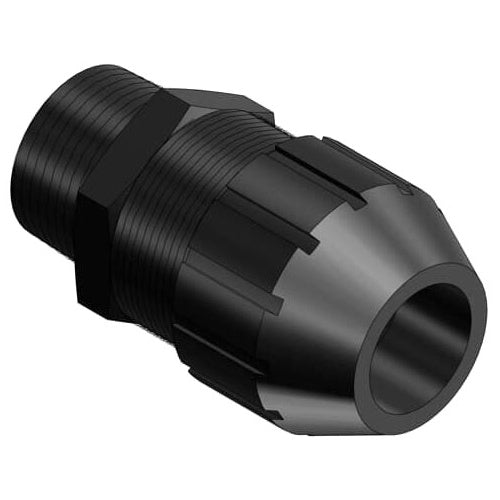

T&B 2676 1" Black Beauty Cord Fit .660-.780

Overview

T&B 2676 1" Black Beauty Cord Fit .660-.780

Product Specifications

• UPC: 78621002676
• Application: Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Strain Relief, Corrosion Resistant; Applicable Standard Federal Specification A-A-50552, A-A-50553, WC-586; Temperature Rating -34 to 105 Deg C
• Catalog Number: 2676
• Brand Name: T&B
• Type: Straight
• Thread Size: 1 Inch
• Material: Molded Black Nylon (Body), Molded Thermoplastic (Gland and Segmented Chuck), Molded Neoprene (Bushing)
• Cord Size: 0.66 to 0.78 Inch
• Size: 1.89 Inch Diameter x 3.3 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT CORD CONNECTOR, 1 INCH, STRAIGHT, CORD RANGE 0.660 TO 0.780 INCH, MEETS COAST GUARD CG293, NYLON, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Molded Black Nylon (Body), Molded Thermoplastic (Gland and Segmented Chuck), Molded Neoprene (Bushing) Material; 1.89 Inch Diameter X 3.3 Inch Length Size; UL, CSA Approval; Hazardous Location Application; 1 Inch Thread Size; 0.66 to 0.78 Inch Cord Size; Black BEAUTY[R] Brand; Constructional Feature Liquidtight, Strain Relief, Corrosion Resistant; Applicable Standard Federal Specification A-A-50552, A-A-50553, WC-586; Temperature Rating -34 to 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210026763
• SKU Name: t&b 2676

Resources

• Manufacturer Spec Sheet
