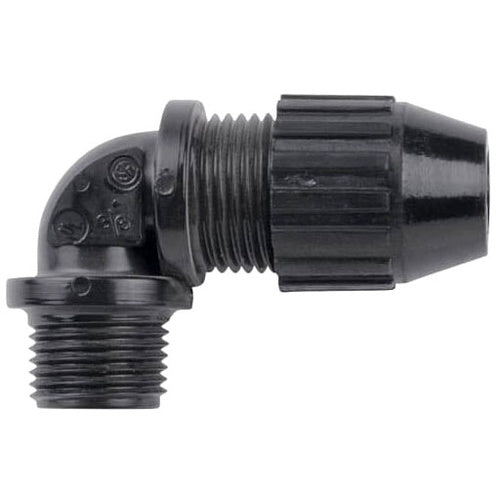

T&B 2683 3/4" 90D Liquidtight Cord Connector .56-.69 Nylon

Overview

High durability for long-lasting performance, Designed for easy installation and maintenance, Compatible with a wide range of industrial systems

Product Specifications

• UPC: 78621002683
• Additional Information: Operating Temperature -34 to 105 Deg C; Enclosure Type Class I, Div 2, Class II, Div 1 and 2; Class III, Div 1 and 2; Applicable Standard NFPA 70; Application Hazardous Location; Cord Size 0.56 to 0.69 Inch
• Catalog Number: 2683
• Brand Name: Black Beauty[TM]
• Type: 90 Degree
• Trade Size: 3/4 Inch
• Material: Black Nylon (Body), Neoprene (Bushing)
• Standard Package: 50
• Approval: UL, CSA
• Used On: Liquid Tight Non-Metallic Strain Relief
• Catalog Description: LIQUIDTIGHT CORD CONNECTOR, 3/4 INCH, 90 DEGREE BEND, CORD RANGE 0.560 TO 0.690 INCH, MEETS COAST GUARD CG293, NYLON, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Type; Nylon Material; UL, CSA Approval; 50 Standard Package; 3/4 Inch Trade Size; Black BEAUTY[R] Brand; Color Black; Cord Size 0.56 to 0.69 Inch; Operating Temperature -34 to 105 Deg C; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Hazardous Location
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210026831
• SKU Name: T&B 2683
