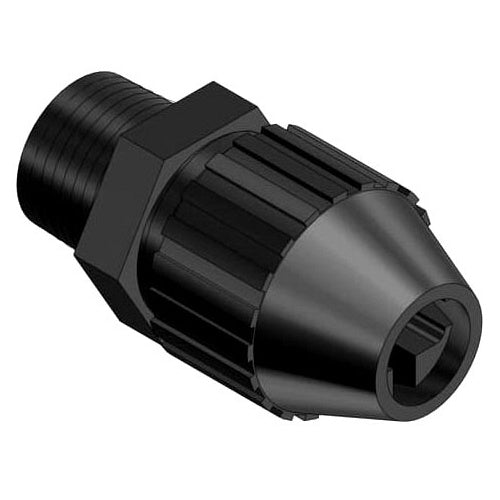

T&B 2828 Connector - Nylon

Overview

T&B 2828 Connector - Nylon

Product Specifications

• UPC: 78621002828
• Constructional Feature: Dusttight, Liquidtight, Corrosion Resistant, Weather Resistant
• Material: Nylon (Body), Neoprene (Bushing)
• Approval: UL, CSA
• Used On: Underground Feeder Cable
• Catalog Number: 2828
• Type: Gland, Tapered Thread
• Minimum Opening: 0.525 Inch x 0.19 Inch
• Maximum Opening: 0.675 Inch x 0.28 Inch
• Trade Size: 3/4 Inch
• Thread Length: 0.62 Inch
• Length: 3 Inch
• Diameter: 1.57 Inch
• Catalog Description: UF CABLE FITTING, 3/4 INCH, CABLE RANGE MAXIMUM .675 X .280, MINIMUM .525 X .19 INCH, NYLON, BLACK
• Category: Service Entrance Cable Fittings
• Full Technical Description: Gland, Tapered Thread Type; Nylon (Body), Neoprene (Bushing) Material; 3 Inch; Underground Feeder Cable Used on; 0.62 Inch Thread Length; 0.525 Inch X 0.19 Inch min. Opening; 0.675 Inch X 0.28 Inch Max. Opening; UL, CSA Approval; 1.57 Inch Diameter; 3/4 Inch Trade Size; Dusttight, Liquidtight, Corrosion Resistant, Weather Resistant
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210028286
• SKU Name: t&b 2828

Resources

• Manufacturer Spec Sheet
