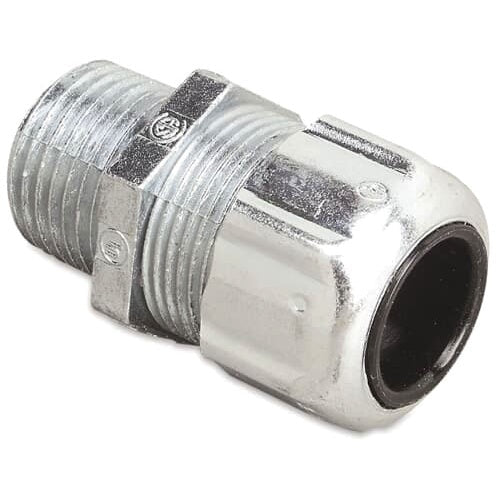

T&B 2930 3/4" Ranger Cord Connector .125-.375

Overview

T&B 2930 3/4" Ranger Cord Connector .125-.375

Product Specifications

• UPC: 78621002930
• Application: Dry/Wet/Hazardous Location
• Additional Information: RoHS Compliant; Constructional Feature Corrosion Resistant, Liquidtight, Strain Relief
• Catalog Number: 2930
• Brand Name: T&B
• Type: Straight
• Thread Size: 3/4 Inch
• Material: Steel (Body/Gland Nut/Grip), Rubber Bushing
• Cord Size: 0.125 to 0.375 Inch
• Size: 1-3/8 Inch Diameter x 1-25/32 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CONNECTOR, 3/4 INCH, STRAIGHT, CORD RANGE 0.125 TO 0.375 INCH, THROAT DIAMTER 13/16 INCH, STEEL BODY, GLANDNUT, AND GRIP, RUBBER BUSHING
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Steel (Body/Gland Nut/Grip), Rubber Bushing Material; 1-3/8 Inch Diameter X 1-25/32 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 3/4 Inch Thread Size; 0.125 to 0.375 Inch Cord Size; Ranger [R] Brand; RoHS Compliant; Constructional Feature Corrosion Resistant, Liquidtight, Strain Relief
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210029306
• SKU Name: t&b 2930

Resources

• Manufacturer Spec Sheet
