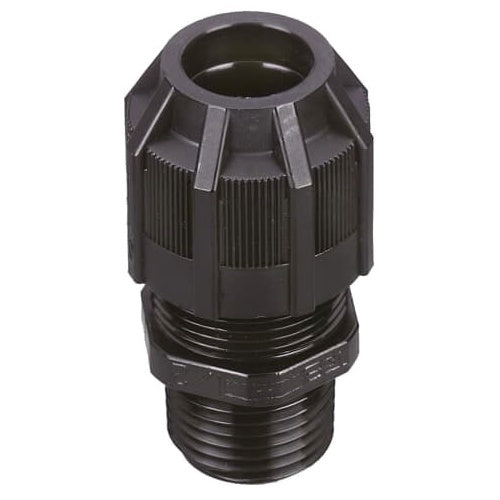

T&B 2930NM 3/4" Nylon Ranger Connector .125-.375

Overview

High resistance to corrosion and environmental factors, Easy installation with user-friendly design, Compatible with various electrical systems

Product Specifications

• UPC: 78621079743
• Application: Dry/Wet/Ordinary Location
• Additional Information: RoHS Compliant; Constructional Feature Corrosion Resistant, Liquidtight, Strain Relief; Temperature Rating -34 to 105 Deg C
• Catalog Number: 2930NM
• Brand Name: T&B
• Type: Straight
• Thread Size: 3/4 Inch
• Material: Black Polyamide/Nylon 6/6 (Body), Rubber (Bushing)
• Cord Size: 0.125 to 0.375 Inch
• Size: 1-13/32 Inch Diameter x 2-3/16 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CONNECTOR, STRAIGHT, 3/4 INCH NPT THREAD, CABLE RANGE 0.125 INCH/3.2MM TO 0.375 INCH/9.5MM, IP65 RATING, UV RESISTANT POLYAMIDE 6.6 BODY, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Black Polyamide/Nylon 6/6 (Body), Rubber (Bushing) Material; 1-13/32 Inch Diameter X 2-3/16 Inch Length Size; UL, CSA Approval; Dry/Wet/Ordinary Location Application; 3/4 Inch Thread Size; 0.125 to 0.375 Inch Cord Size; RANGER[R] Brand; RoHS Compliant; Constructional Feature Corrosion Resistant, Liquidtight, Strain Relief; Temperature Rating -34 to 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210797434
• SKU Name: T&B 2930NM
