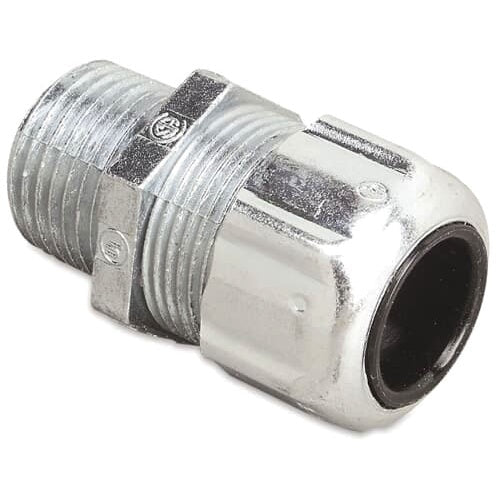

T&B 2940 1" Straight Liquidtight Relief Connector .31-.56 Steel

Overview

T&B 2940 1" Straight Liquidtight Relief Connector .31-.56 Steel

Product Specifications

• UPC: 78621002940
• Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair
• Catalog Number: 2940
• Brand Name: Ranger[R]
• Type: Straight, Strain Relief
• Thread Size: 1 Inch
• Material: Steel (Body/Gland Nut/Grip), Neoprene (Bushing)
• Cord Size: 0.31 to 0.56 Inch
• Size: 1-3/8 Inch Diameter x 1-3/4 Inch Length
• Approval: UL E13938, CSA 52391
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CONNECTOR, 1 INCH, STRAIGHT, CORD RANGE 0.310 TO 0.560 INCH, THROAT DIAMTER 11/16 INCH, STEEL BODY, GLANDNUT, AND GRIP, RUBBER BUSHING
• Category: Cable & Cord Grips
• Full Technical Description: Straight, Strain Relief Type; Steel (Body/Gland Nut/Grip), Neoprene (Bushing) Material; 1-3/8 Inch Diameter X 1-3/4 Inch Length Size; UL E13938, CSA 52391 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1 Inch Thread Size; 0.31 to 0.56 Inch Cord Size; RANGER[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210029405
• SKU Name: t&b 2940

Resources

• Manufacturer Spec Sheet
