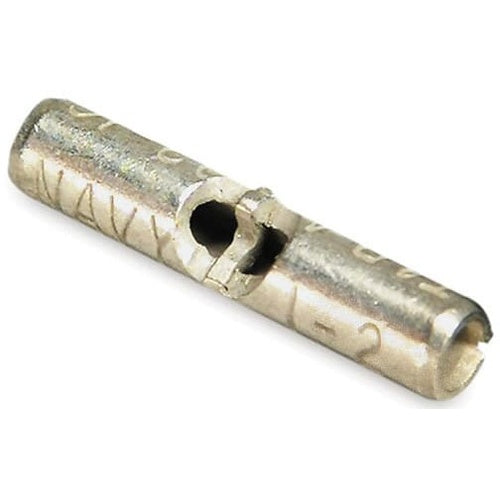

T&B 2C-10 12-10 Splice Connector

Overview

T&B 2C-10 12-10 Splice Connector

Product Specifications

• UPC: 78621080007
• Color: Metallic
• Material: Electro Tin Plated Copper
• Temperature Rating: 150 Deg C
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Catalog Number: 2C-10
• Brand Name: Sta-Kon
• Type: Butt
• Voltage Rating: 600 Volt
• Length: 0.72 Inch
• Barrel Outer Diameter: 0.22 Inch
• Conductor Size: 12 to 10 AWG
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 0.72 INCH, WIDTH 0.22 INCH, WIRE RANGE 12-10 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Metallic Color; 0.72 Inch; UL, CSA Approval; 600 Volt Voltage Rating; 150 Deg C Temperature Rating; 250 Per Outer Pack Standard Package; 12 to 10 AWG Conductor Size; Non-Insulated Insulation Type; 0.22 Inch Barrel Outer Diameter
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210800073
• SKU Name: t&b 2c10

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
