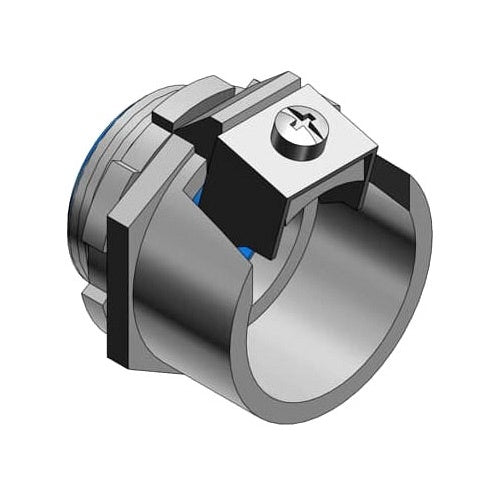

T&B 3112 1/2" Insulated Tite-Bite Connector

Overview

High load capacity for demanding industrial applications

Product Specifications

• UPC: 78621003112
• Length: 1-1/8 Inch
• Installation: (1) Screw, Saddle
• Throat Type: Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 100 per Pack
• Approval: UL, CSA
• Catalog Number: 3112
• Brand Name: TITE-BITE[R]
• Type: Straight
• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metallic Conduit/Metal Clad Cable
• Cord Size: 0.67 to 0.92 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, STRAIGHT, TRADE SIZE 1/2 INCH, KNOCKOUT SIZE 1/2 INCH, CABLE RANGE 0.670 TO 0.920 INCH, STEEL WITH ZINC PLATING, NYLON INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Steel Material; 1-1/8 Inch; (1) Screw, Saddle Installation; UL, CSA Approval; 100 Per Pack Standard Package; 1/2 Inch Trade Size; 1/2 Inch Knockout Size; 0.67 to 0.92 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metallic Conduit/Metal Clad Cable; Single Cable Opening; Tite-Bite [R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210031125
• SKU Name: T&B 3112
