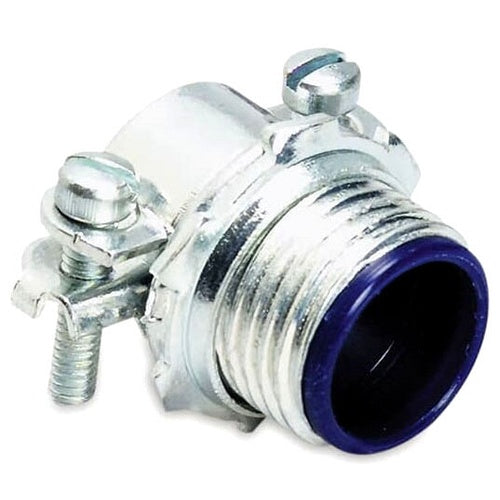

T&B 3302M-TB 1/2" Insulated 2-Screw Connector

Overview

High resistance to corrosion and environmental stress, Easy installation with user-friendly design, Compatible with a wide range of electrical systems

Product Specifications

• UPC: 78621080552
• Standard Package: 500 per Outer Pack
• Approval: UL, CSA
• Additional Information: Connection Type Straight; Overall Dimension 1 Inch Length x 1-13/32 Inch Width x 1 Inch Height
• Catalog Number: 3302M-TB
• Brand Name: T&B
• Installation: 2-Screw, Clamp
• Cable Type: Non-Metallic Sheathed/Flexible/Service Entrance Cable
• Cable Size: (2) 14 AWG, (2) 12 AWG, (2) 10 AWG, (3) 14 AWG, (3) 12 AWG, (3) 10 AWG Non-Metallic Single Cable, (2) 14 AWG, (2) 12 AWG Non-Metallic Pair Cable, (2) 12 AWG to (2) 4 AWG, (3) 12 AWG, (3) 10 AWG (Service Entrance Cable)
• Throat Type: Insulated
• Knockout Size: 1/2 Inch
• Material: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut), Thermoplastic (Insulator)
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 1/2 INCH, NYLON INSULATED, TWO SCREW CONNECTOR, STEEL WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut), Thermoplastic (Insulator) Material; 2-Screw, Clamp Installation; Non-Metallic Sheathed/Flexible/Service Entrance Cable Cable Type; (2) 14 AWG, (2) 12 AWG, (2) 10 AWG, (3) 14 AWG, (3) 12 AWG, (3) 10 AWG Non-Metallic Single Cable, (2) 14 AWG, (2) 12 AWG Non-Metallic Pair Cable, (2) 12 AWG to (2) 4 AWG, (3) 12 AWG, (3) 10 AWG (Service Entrance Cable) Cable Size; UL, CSA Approval; 500 Per Outer Pack Standard Package; 1/2 Inch Knockout Size; Insulated Throat Type; Connection Type Straight; Overall Dimension 1 Inch Length X 1-13/32 Inch Width X 1 Inch Height
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210805528
• SKU Name: T&B 3302MTB
