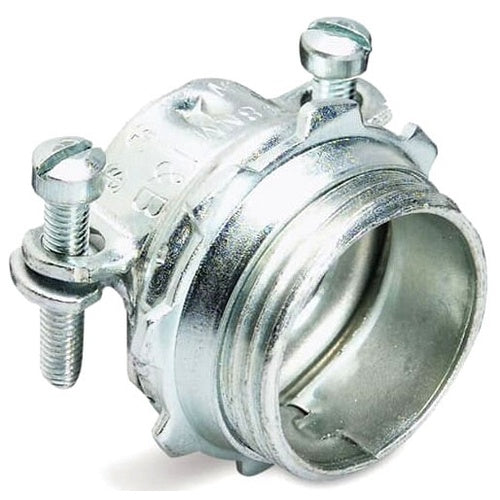

T&B 3303-TB 3/4" 2-Screw Connector Str Sheathcable

Overview

High-impact resistance for enhanced durability, Weatherproof design suitable for outdoor use, Easy installation with pre-drilled mounting holes

Product Specifications

• UPC: 78621003303
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Additional Information: Connection Type Straight; Overall Dimension 1-1/4 Inch Length x 1-5/8 Inch Width x 1-1/8 Inch Height
• Catalog Number: 3303-TB
• Brand Name: T&B
• Installation: 2-Screw, Clamp
• Cable Type: Non-Metallic Sheathed/Flexible Cable
• Cable Size: (1) 8/2 AWG, (1) 4/3 AWG
• Throat Type: Non-Insulated
• Knockout Size: 3/4 Inch
• Material: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut)
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 3/4 INCH, TWO SCREW CONNECTOR, STEEL WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut) Material; 2-Screw, Clamp Installation; Non-Metallic Sheathed/Flexible Cable Cable Type; (1) 8/2 AWG, (1) 4/3 AWG Cable Size; UL, CSA Approval; 250 Per Outer Pack Standard Package; 3/4 Inch Knockout Size; Non-Insulated Throat Type; Connection Type Straight; Overall Dimension 1-1/4 Inch Length X 1-5/8 Inch Width X 1-1/8 Inch Height
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210033037
• SKU Name: T&B 3303TB
