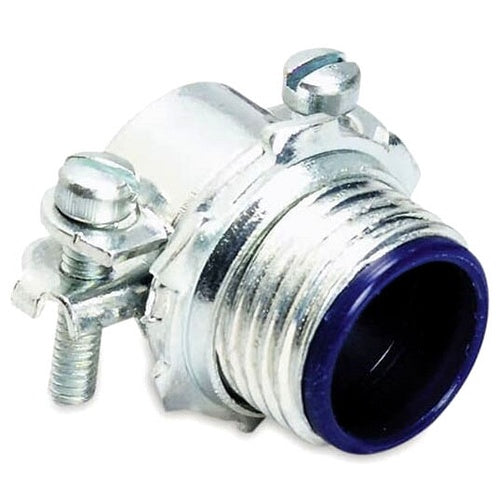

T&B 3305M Insulated 2 Screw Connector

Overview

High-impact resistance for superior durability, Easy installation with straightforward compatibility, Corrosion-resistant finish for longevity in harsh environments

Product Specifications

• UPC: 78621080555
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-1/4 Inch L x 2-1/4 Inch W x 1-29/32 Inch H
• Catalog Number: 3305M
• Installation: 2 Screw Clamp
• Cable Type: Non-Metallic Sheathed Cable/Flexible Cable/Service Entrance Cable
• Cable Size: (2) 8 AWG, (2) 6 AWG, (2) 4 AWG, (3) 8 AWG Non-Metallic Pair Cable, (2) 1/0 to 2 AWG (Ground), (2) 2/0 to 1 AWG (Ground) (Service Entrance Cable)
• Throat Type: Insulated
• Knockout Size: 1-1/4 Inch
• Material: Electro Zinc Plated Chromate Coated Malleable Iron (Body/Clamp), Steel (Locknut), Thermoplastic (Insulator)
• Standard Package: 25
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 1-1/4 INCH, NYLON INSULATED, TWO SCREW CONNECTOR, MALLEABLE IRON WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Malleable Iron (Body/Clamp), Steel (Locknut), Thermoplastic (Insulator) Material; 2 Screw Clamp Installation; Non-Metallic Sheathed Cable/Flexible Cable/Service Entrance Cable Cable Type; (2) 8 AWG, (2) 6 AWG, (2) 4 AWG, (3) 8 AWG Non-Metallic Pair Cable, (2) 1/0 to 2 AWG (Ground), (2) 2/0 to 1 AWG (Ground) (Service Entrance Cable) Cable Size; UL, CSA Approval; 25 Standard Package; 1-1/4 Inch Knockout Size; Insulated Throat Type; Overall Dimension 1-1/4 Inch L X 2-1/4 Inch W X 1-29/32 Inch H
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210805559
• SKU Name: T&B 3305M
