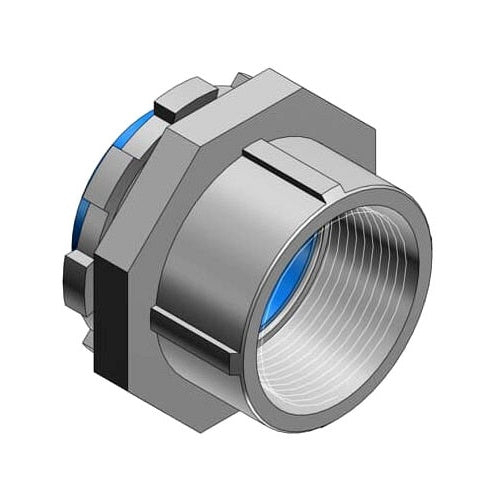

T&B 370AL 1/2" Connector Bullet Hub Type Aluminum

Overview

High-impact resistance for enhanced durability, Corrosion-resistant finish for prolonged lifespan, Easy installation with user-friendly design, Compatible with a wide range of electrical systems

Product Specifications

• UPC: 78621082915
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NFPA 70, JIC EGP1, JIC EMP 1, A-A-50553; Enclosure NEMA FB-1; Maximum Wall Thickness 5/16 Inch; Temperature Rating 105 Deg C
• Catalog Number: 370AL
• Type: Bulkhead, Tapered Female Threaded
• Trade Size: 1/2 Inch
• Size: 1-3/8 Inch Dia
• Constructional Feature: Corrosion Resistant, Dusttight, Raintight, Watertight, Hazardous Location
• Ground Type: Locknut Bonding/Grounding Screw
• Material: Copper Free Aluminum Hub, Zinc Electroplated Chromate Coated Hardened Steel Locknut/Screw, Neoprene O-Ring
• Approval: UL 514B, CSA C22.2
• Catalog Description: 1/2 INCH HUB CONNECTOR, ALUMINUM, FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Bulkhead, Tapered Female Threaded Type; Copper Free Aluminum Hub, Zinc Electroplated Chromate Coated Hardened Steel Locknut/Screw, Neoprene O-ring Material; 1-3/8 Inch Dia Size; Rigid Conduit/Imc Used on; UL 514B, CSA C22.2 Approval; Locknut Bonding/Grounding Screw; 1/2 Inch Trade Size; Corrosion Resistant, Dusttight, Raintight, Watertight, Hazardous Location; BULLET[R] Brand; Applicable Standard NFPA 70, JIC EGP1, JIC EMP 1, A-A-50553; Enclosure NEMA FB-1; Maximum Wall Thickness 5/16 Inch; Temperature Rating 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210829159
• SKU Name: T&B 370AL
