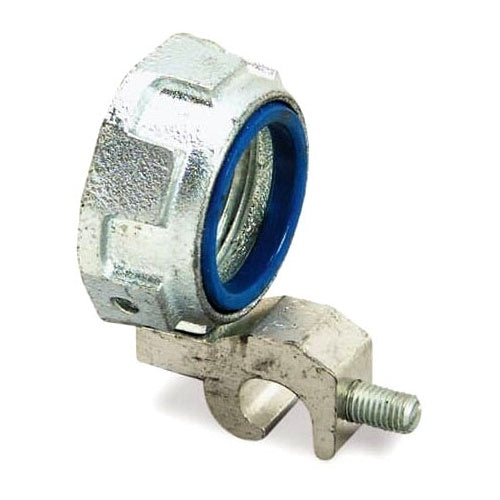

T&B 3886 2-1/2" Insulated Ground Bushing W/8-2/0 Range

Overview

High-performance reliability in extreme conditions, Precision-engineered for enhanced durability, Compatible with a variety of industrial systems

Product Specifications

• UPC: 78621003886
• Diameter: 3.516 Inch
• Height: 0.94 Inch
• Material: Electro Zinc Plated Cast Malleable Iron
• Standard Package: 10 per Outer Pack
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Throat Size 2.222 Inch; Insulator Material Thermoplastic; Temperature Rating 150 Deg C
• Catalog Number: 3886
• Brand Name: T&B
• Type: Threaded, Set Screw
• Trade Size: 2-1/2 Inch
• Wire Size: 8 to 2/0 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Catalog Description: 2-1/2 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 8 TO 2/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 0.94 Inch; Imc/Rigid Conduit Used on; 8 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 3.516 Inch Diameter; 10 Per Outer Pack Standard Package; 2-1/2 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Throat Size 2.222 Inch; Insulator Material Thermoplastic; Temperature Rating 150 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038865
• SKU Name: T&B 3886
