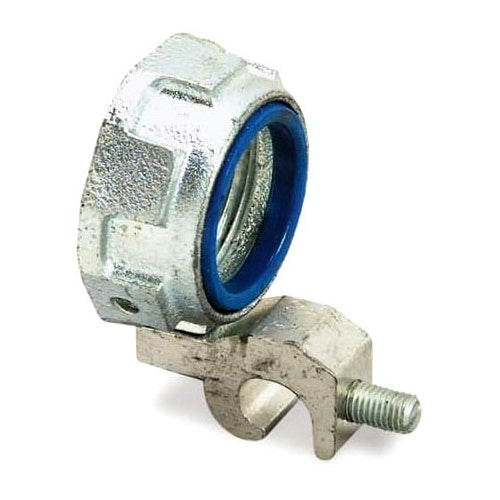

T&B 3999 6" Insulated Ground Bushing W/6-4/0 Range

Overview

T&B 3999 6" Insulated Ground Bushing W/6-4/0 Range

Product Specifications

• UPC: 78621003999
• Diameter: 7.406 Inch
• Height: 1.2 Inch
• Material: Electro Zinc Plated Cast Malleable Iron
• Standard Package: 1
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Insulator Material Thermoplastic; Throat Size 5.458 Inch; Temperature Rating 150 Deg C
• Catalog Number: 3999
• Model: 3870
• Type: Threaded, Set Screw
• Trade Size: 6 Inch
• Wire Size: 6 to 4/0 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Catalog Description: 6 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 6 TO 4/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Set Screw Type; Electro Zinc Plated Cast Malleable Iron Material; 1.2 Inch; Rigid Conduit/Imc Used on; 6 to 4/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 7.406 Inch Diameter; 1 Standard Package; 6 Inch Trade Size; Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 5.458 Inch; Temperature Rating 150 Deg C; 3870 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210039992
• SKU Name: t&b 3999
