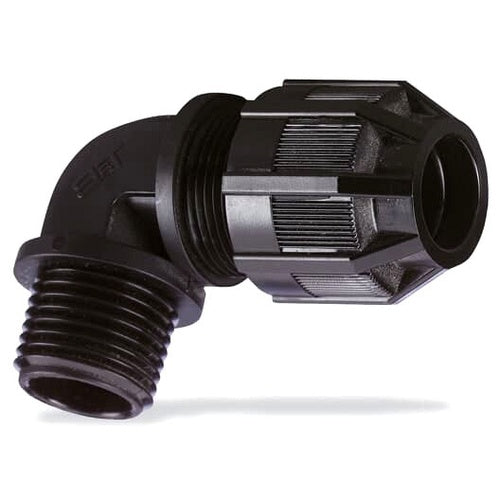

T&B 4961NM 1/2" 90D Liquidtight Relief Connector .31-.56 Pa6

Overview

T&B 4961NM 1/2" 90D Liquidtight Relief Connector .31-.56 Pa6

Product Specifications

• UPC: 78621079750
• Application: Dry/Wet/Ordinary Location
• Additional Information: RoHS Compliant; Constructional Feature Corrosion Resistant, Liquidtight, Strain Relief; Temperature Rating -34 to 105 Deg C
• Catalog Number: 4961NM
• Brand Name: T&B
• Type: 90 Degree
• Thread Size: 1/2 Inch
• Material: Black Polyamide/Nylon 6/6 (Body), Rubber (Bushing)
• Cord Size: 0.31 to 0.56 Inch
• Size: 1-7/32 Inch Diameter x 1-1/4 Inch Length
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CONNECTOR, 90 DEGREE BEND, 1/2 INCH NPT THREAD, CABLE RANGE 0.310 INCH/7.9MM TO 0.560 INCH/14.2MM, IP65 RATING, UV RESISTANT POLYAMIDE 6.6 BODY, BLACK
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Type; Black Polyamide/Nylon 6/6 (Body), Rubber (Bushing) Material; 1-7/32 Inch Diameter X 1-1/4 Inch Length Size; UL, CSA Approval; Dry/Wet/Ordinary Location Application; 1/2 Inch Thread Size; 0.31 to 0.56 Inch Cord Size; RANGER[R] Brand; RoHS Compliant; Constructional Feature Corrosion Resistant, Liquidtight, Strain Relief; Temperature Rating -34 to 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210797502
• SKU Name: t&b 4961nm

Resources

• Manufacturer Spec Sheet
