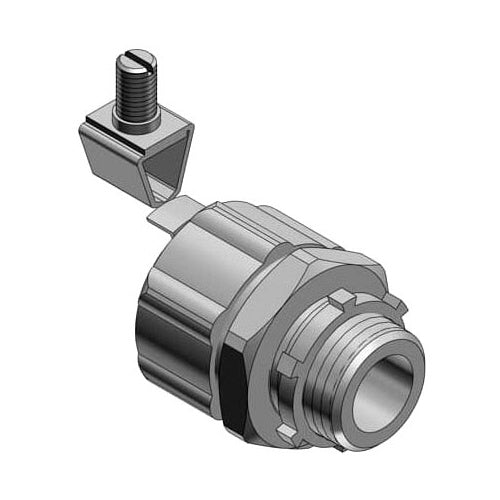

T&B 5234ALGR 1" Straight Liquidtight Non-Insulated Ground Connector Aluminum

Overview

T&B 5234ALGR 1" Straight Liquidtight Non-Insulated Ground Connector Aluminum

Product Specifications

• UPC: 78621074434
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
• Catalog Number: 5234ALGR
• Model: 52
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 1 Inch
• Material: Aluminum
• Standard Package: 50
• Approval: UL, CSA
• Catalog Description: 1 INCH ALUMINUM LIQUIDTIGHT GROUNDING CONNECTOR, NON-INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Aluminum Material; Liquidtight Flexible Metallic Conduit Used on; UL, CSA Approval; 50 Standard Package; 1 Inch Trade Size; Non-Insulated Throat Type; REVOLVER[R] Brand; Applicable Standard Federal Specification A-A-50552/A-A-50553/Wc-586, NEMA FB 1; Ground Wire Size 14 to 4 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used Where External Bonding Jumper is Required Around Liquidtight Flexible Metal Conduit, Flexible Raceway is Installed in Outdoor or Indoors Location Where Exposed to Continuous or Intermittent Moisture; 52 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210744346
• SKU Name: t&b 5234algr

Resources

• Manufacturer Spec Sheet
• Technical Drawing
