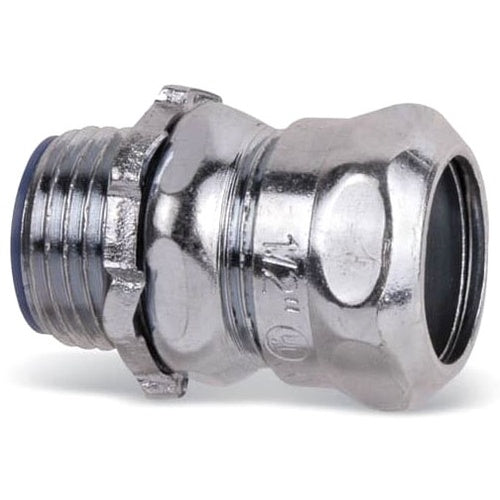

T&B 5323 1" Emt Insulated Compress Connector

Overview

Durable construction for enhanced longevity, High operational efficiency to reduce energy consumption, Designed for easy installation and maintenance

Product Specifications

• UPC: 78621005323
• Standard Package: 100
• Approval: UL 514-B, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA, NFPA 70; Application to Connect and Effectively Bond Electrical Metallic Tubing to a Box or an Enclosure, to Provide a Connection Between Tubing and the Connector and to Couple Ends of Tubing
• Catalog Number: 5323
• Type: Compression
• Throat Type: Nylon Insulated
• Trade Size: 1 Inch
• Diameter: 1-11/16 Inch
• Length: 1-7/8 Inch
• Material: Electro Zinc Plated Chromate Coated Steel
• Constructional Feature: Rain Tight
• Catalog Description: 1 INCH INSULATED COMPRESSION CONNECTOR, STEEL ELECTRO ZINC PLATED, INSULATOR THERMOPLASTIC FOR USE WITH EMT CONDUIT
• Category: Large Terminals & Connectors
• Full Technical Description: Compression Type; Electro Zinc Plated Chromate Coated Steel Material; 1-7/8 Inch; EMT Conduit Used on; UL 514-B, CSA C22.2 Approval; 1-11/16 Inch Diameter; 100 Standard Package; 1 Inch Trade Size; Rain Tight; Nylon Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA, NFPA 70; Application to Connect and Effectively Bond Electrical Metallic Tubing to A Box or An Enclosure, to Provide A Connection Between Tubing and the Connector and to Couple Ends of Tubing
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 786210053233
• SKU Name: T&B 5323
