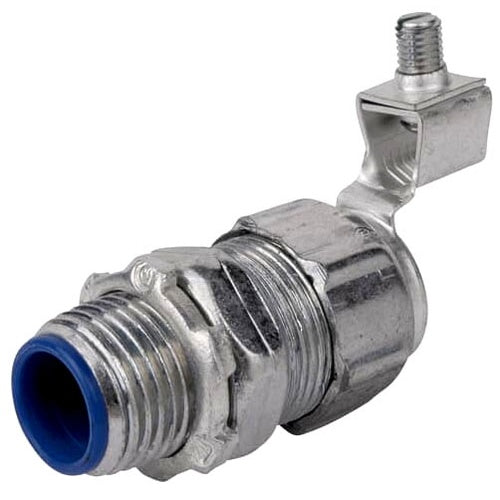

T&B 5331GR 3/8" Grounded Liquidtight Straight

Overview

High-performance electrical connection for industrial use, Durable construction for long-lasting reliability, Meets industry safety and compliance standards

Product Specifications

• UPC: 78621089997
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Applicable Standard Federal Specification A-A-50552/A-A-50553/WC-586, NEMA FB 1; Ground Wire Size 14 to 8 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used where External Bonding Jumper is Required Around Liquidtight Flexible Metal Con
• Catalog Number: 5331GR
• Model: 53
• Type: Straight
• Throat Type: Insulated
• Trade Size: 3/8 Inch
• Material: Electro Zinc Plated Steel
• Standard Package: 100
• Approval: UL, CSA
• Catalog Description: 3/8 INCH STEEL EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Steel Material; Liquidtight Flexible Metallic Conduit Used on; UL, CSA Approval; 100 Standard Package; 3/8 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; Applicable Standard Federal Specification A-A-50552/A-A-50553/Wc-586, NEMA FB 1; Ground Wire Size 14 to 8 AWG; Application to Positively Bond Conduit to Box or Enclosure, Used Where External Bonding Jumper is Required Around Liquidtight Flexible Metal Conduit, Flexible Raceway is Installed in Outdoor or Indoors Location Where Exposed to Continuous or Intermittent Moisture; 53 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210899978
• SKU Name: T&B 5331GR
