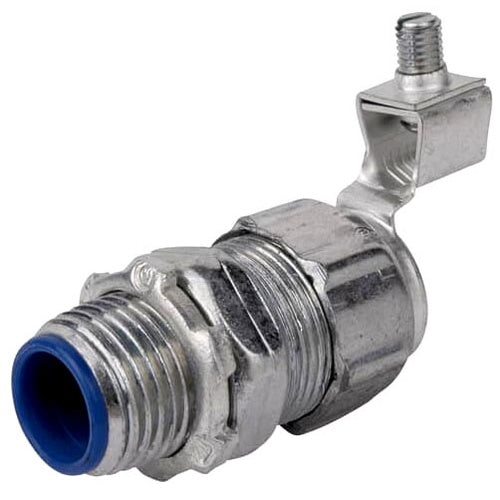

T&B 5333GR 3/4" Insulated Ground Liquidtight Straight

Overview

High-performance design for industrial applications, Durable construction for extended service life, Easy installation for quick integration

Product Specifications

• UPC: 78621089999
• Approval: UL 467/514B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Additional Information: Constructional Feature Corrosion Resistant; Ground Wire Size 14 to 4 AWG; Includes Grounding Lug; Application Hazardous Location, Indoor/Outdoor; Applicable Standard NEMA FB-1, Federal Specification A-A-50552/H-28
• Catalog Number: 5333GR
• Brand Name: T&B
• Model: 53
• Type: Straight
• Throat Type: Thermoplastic Insulated
• Trade Size: 3/4 Inch
• Material: Zinc Electroplated Chromate Coated Steel (Body/Gland/Locknut/Ground Cone), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket), Steel (Strap), Bright Dip High-Conductivity Copper (Lug)
• Standard Package: 25 per Outer Pack
• Catalog Description: 3/4 INCH STEEL EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR FLEXIBLE METAL CONDUIT FITTING, STRAIGHT, WITH REVOLVER LUG, WITH TIN PLATED COPPER ALLOY LUG FOR AWG #14 TO #2 GROUND WIRE, FOR USE IN WET LOCATIONS, 25 PIECES
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Steel (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 25 Standard Package; 3/4 Inch Trade Size; Insulated Throat Type; Revolver [R] Brand; RoHS Compliant; Diameter 1-21/32 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2; Application Indoor/Outdoor, Industrial/Commercial, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210899992
• SKU Name: T&B 5333GR
