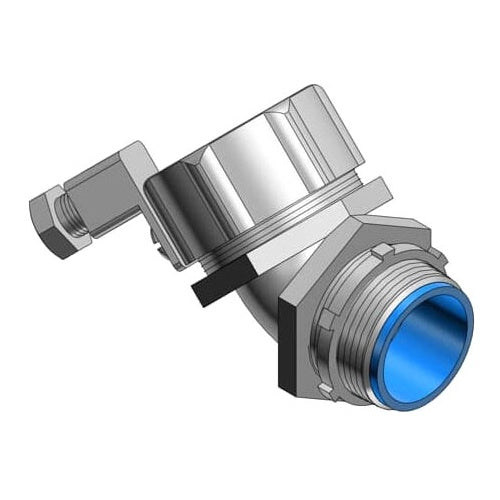

T&B 5347GR 2" Insulated Ground Liquidtight 45 Deg

Overview

T&B 5347GR 2" Insulated Ground Liquidtight 45 Deg

Product Specifications

• UPC: 78621089631
• Used On: Flexible Metallic Conduit
• Additional Information: Lug Size 4 to 2/0 AWG; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Constructional Feature Liquid Tight, Water Tight, Oil Tight; Application Indoor, Outdoor, Hazardous Location; Applicable Standard NEMA FB-1, NFPA 70, Feder
• Catalog Number: 5347GR
• Model: 53
• Type: 45 Degree
• Throat Type: Insulated with Ground Lug
• Trade Size: 2 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron (Body/Gland/Locknut/Ground Cones), Thermoplastic (Sealing Ring/Insulator), Stainless Steel and Santoprene (Sealing Gasket), Steel (Strap), Bright Dipped Copper (Lug)
• Standard Package: 5 per Outer Pack
• Approval: UL 467/514B, CUL C22.2
• Catalog Description: 2 INCH 45 DEGREE MALLEABLE IRON EXTERNAL BONDING LIQUIDTIGHT INSULATED CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 45 Degree, Threaded, Grounding Type; Zinc Electroplated/Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 5 Standard Package; 2 Inch Trade Size; Insulated Throat Type; REVOLVER[R] Brand; RoHS Compliant; Diameter 3-1/4 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300GR Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210896311
• SKU Name: t&b 5347gr
