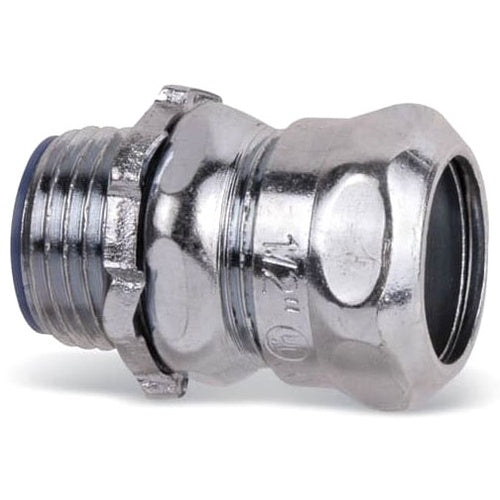

T&B 5423 1-1/4" Insulated Emt Compression Connector

Overview

Exceptional load-bearing capacity for heavy-duty applications

Product Specifications

• UPC: 78621005423
• Standard Package: 25
• Approval: UL 514-B, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA, NFPA 70; Application to Connect and Effectively Bond Electrical Metallic Tubing to a Box or an Enclosure, to Provide a Connection Between Tubing and the Connector and to Couple Ends of Tubing
• Catalog Number: 5423
• Type: Compression
• Throat Type: Nylon Insulated
• Trade Size: 1-1/4 Inch
• Diameter: 2-1/16 Inch
• Length: 2-11/32 Inch
• Material: Electro Zinc Plated Chromate Coated Steel
• Constructional Feature: Rain Tight
• Catalog Description: 1-1/4 INCH INSULATED COMPRESSION CONNECTOR, STEEL ELECTRO ZINC PLATED, INSULATOR THERMOPLASTIC FOR USE WITH EMT CONDUIT
• Category: Steel Insulated Straight Compression Emt Connectors
• Full Technical Description: Compression Type; Electro Zinc Plated Chromate Coated Steel Material; 2-11/32 Inch; EMT Conduit Used on; UL 514-B, CSA C22.2 Approval; 2-1/16 Inch Diameter; 25 Standard Package; 1-1/4 Inch Trade Size; Rain Tight; Nylon Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA, NFPA 70; Application to Connect and Effectively Bond Electrical Metallic Tubing to A Box or An Enclosure, to Provide A Connection Between Tubing and the Connector and to Couple Ends of Tubing
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 786210054230
• SKU Name: T&B 5423
