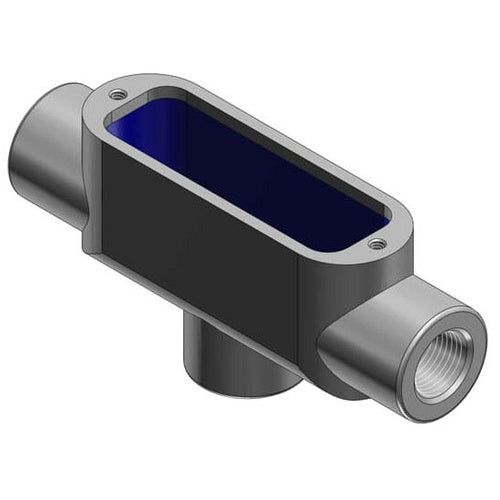

T&B TB448 1-1/4" Conduit Body Iron Tb Form-8

Overview

High-impact resistance for enhanced durability, Corrosion-resistant materials for longevity, Easy installation with user-friendly design, Compliant with industry safety standards

Product Specifications

• UPC: 78621016629
• Size: 8-1/2 Inch L x 2-3/16 Inch W x 3-5/16 Inch H
• Installation: Threaded
• Material: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL 514A, UL 514B, UL E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: TB448
• Brand Name: BlueKote[R]
• Access Opening: Tee Back
• Configuration: TB
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Steel Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1-1/4 Inch
• Catalog Description: 1-1/4 INCH FORM 8 (TB) CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 8-1/2 Inch L X 2-3/16 Inch W X 3-5/16 Inch H Size; Rigid/Imc Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A, UL 514B, UL E2969, CSA C22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Steel Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; Tee Hub Location; Form 8 Form Type; Tee Back Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210166292
• SKU Name: T&B TB448
