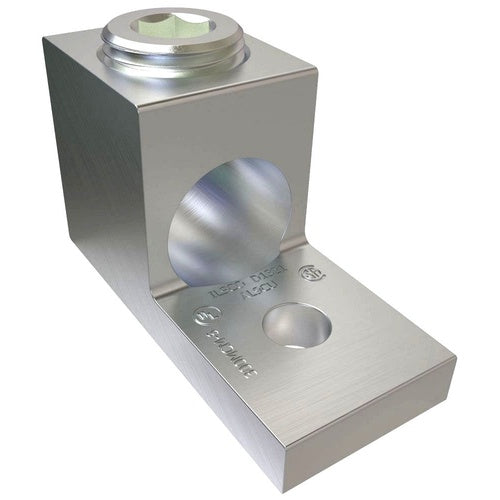

ILSCO TA-300 6-300mcm Aluminum/Copper Lug

Overview

Ilsco TA-300 6-300mcm Aluminum/Copper Lug

Product Specifications

• UPC: 78366918741
• Screw Type: 5/16 Inch Hex
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Number Of Pad Holes: 1
• Pad Size: 1 Inch L x 55/64 Inch W x 1/4 Inch Thk
• Stud Size: 1/4 Inch
• Overall Length: 2 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Temperature Rating 90 Deg C; Packaging Quantity 25
• Catalog Number: TA-300
• Model: TA
• Type: Chamfered Wire Entry
• Number Of Conductors: 1
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 300 KCMIL
• Conductor Material: Aluminum/Copper
• Pad Type: Straight
• Catalog Description: ALUMINUM MECHANICAL LUG, CONDUCTOR RANGE 300-6, 1 PORT, 1 HOLE, 1/4IN BOLT SIZE, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Chamfered Wire Entry Type; Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 2 Inch Overall Length; 6 AWG min. Conductor Size; 300 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 1 Inch L X 55/64 Inch W X 1/4 Inch Thk Pad Size; 1 Pad Hole(S); Straight Pad Type; 5/16 Inch Hex Screw Type; Temperature Rating 90 Deg C; Packaging Quantity 25; TA Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669187410
• SKU Name: ta300 ilsco
