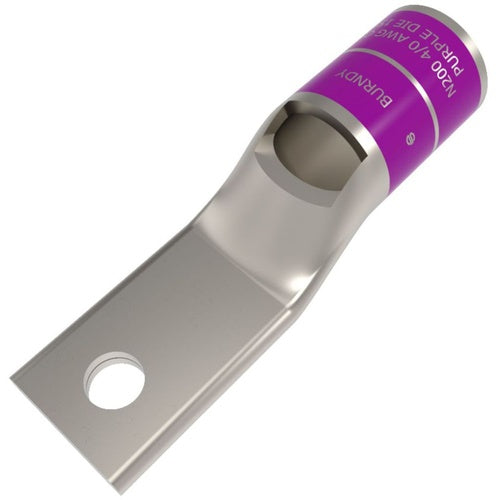

Burndy YA28LNT14 4/0Awg 1-Hole Lug

Overview

Burndy YA28LNT14 4/0Awg 1-Hole Lug

Product Specifications

• Catalog Description: 4/0 AWG CU, ONE HOLE, 1/4 STANDARD BARREL, INSPECTION WINDOW, NARROW TONGUE INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Purple Color; 2.6 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 15 Die Index; 0.76 Inch W X 0.14 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow; YA-L-NT Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810235089
• SKU Name: ya28lnt14 burndy
