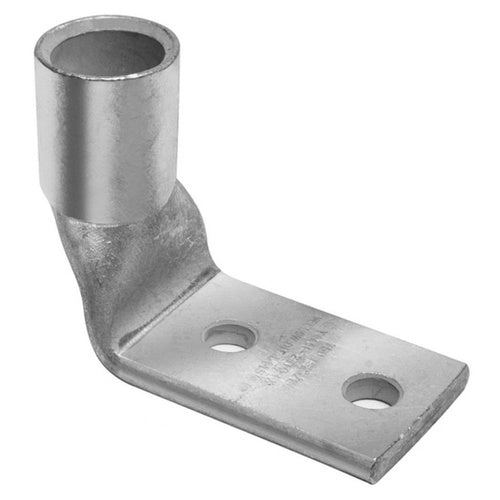

Burndy YA2CL2TC1490 2Awg Terminal Lug

Overview

Burndy YA2CL2TC1490 2Awg Terminal Lug

Product Specifications

• UPC: 78181025129
• Pad Size: 0.6 INCH W X 0.11 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 5/8 INCH
• Stud Size: 1/4 INCH
• Color: BROWN
• Die Index: 10
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 1.58 INCH
• Approval: UL 486-A, UL 486-B, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 15/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YA2CL2TC1490
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-L-2TC
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 2 AWG STRANDED
• Barrel Type: SKIVED, STANDARD, 90 DEG
• Barrel Length: 0.88 INCH
• Catalog Description: 2 AWG CU, TWO HOLE, 1/4 STUD SIZE, 5/8 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX, 90 DEGREE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 1.58 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL 486-A, UL 486-B, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 10 Die Index; 0.6 Inch W X 0.11 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Skived, Standard, 90 Deg Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 15/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810251294
• SKU Name: ya2cl2tc1490 burndy
