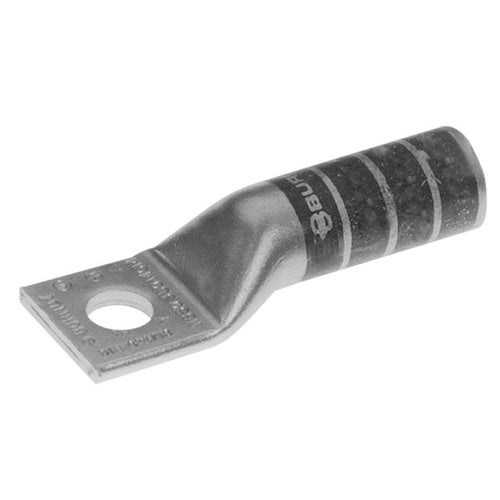

Burndy YA2CT4 2Awg Terminal Lug

Overview

Burndy YA2CT4 2Awg Terminal Lug

Product Specifications

• UPC: 78181001796
• Number Of Pad Holes: 1
• Stud Size: 3/8 INCH
• Color: BROWN
• Die Index: 10
• Material: TIN PLATED COPPER
• Overall Length: 2.43 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE CHAMFERED; WIRE STRIP LENGTH 1 5/16 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YA2CT4
• Brand Name: HYLUG[T], BURNDY[R]
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 2 AWG SOLID/STRANDED
• Barrel Type: STRAIGHT
• Barrel Length: 1.25 INCH
• Pad Size: 0.66 INCH W X 0.11 INCH THK
• Catalog Description: CU TERMINAL, 1 HOLE, #2 STR, 3/8" STUD, 2.43" L, 0.66" W, TIN PLATED, BROWN, 10 INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Brown Color; 2.43 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG Solid/Stranded Conductor Size; 3/8 Inch Stud Size; 10 Die Index; 0.66 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Chamfered; Wire Strip Length 1 5/16 Inch; Temperature Rating 90 Deg C
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 781810017968
• SKU Name: ya2ct4 burndy
