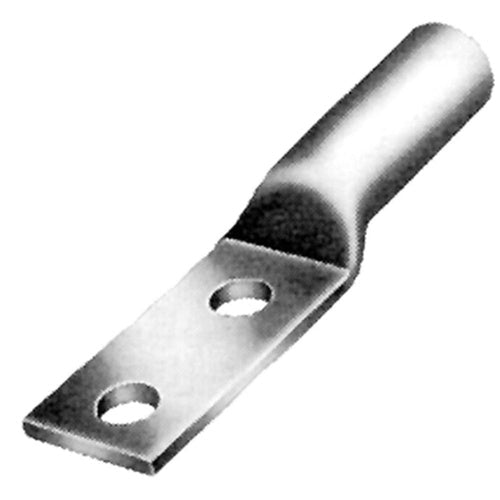

Burndy YA30A9N100T516E 300KCMIL Lug

Overview

Burndy YA30A9N100T516E 300KCMIL Lug

Product Specifications

• UPC: 78181029214
• Pad Size: 1 INCH W X 0.36 INCH THK
• Number Of Pad Holes: 1
• Stud Size: 5/16 INCH
• Color: BLUE
• Die Index: 470
• Material: ELECTRO TIN PLATED ALUMINUM
• Overall Length: 3.12 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 1 5/8 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YA30A9N100T516E
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-E
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: ALUMINUM/COPPER
• Conductor Size: 300 KCMIL (ALUMINUM), 300 KCMIL STRANDED (COPPER)
• Barrel Type: NARROW, STRAIGHT
• Barrel Length: 1.53 INCH
• Catalog Description: 300 KCMIL, AL TERMINAL, ONE HOLE, 5/16", STUD SIZE, NARROW TONGUE, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, AL9CU, UL/CSA, 90C, UP TO 35KV, E-LINE SERIES, BLUE COLOR CODE, 470 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Material; Blue Color; 3.12 Inch Overall Length; 1.53 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 300 kcmil (Aluminum), 300 kcmil Stranded (Copper) Conductor Size; 5/16 Inch Stud Size; 470 Die Index; 1 Inch W X 0.36 Inch Thk Pad Size; 1 Pad Hole(S); Narrow, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 1 5/8 Inch; Temperature Rating 90 Deg C; YA-E Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810292143
• SKU Name: ya30a9n100t516e burndy
