Burndy YA34A7 500 Al-1 Hole-1/2 Nema

Overview

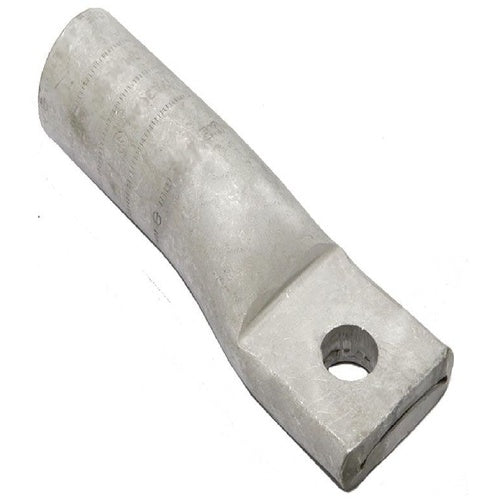

Burndy YA34A7 500 Al-1 Hole-1/2 Nema

Product Specifications

• Catalog Description: HYLUG ALUMINUM COMPRESSION TERMINAL; 1-HOLE WITHOUT INSPECTION WINDOW; ACCOMMODATES: 500 KCMIL ALUMINUM/COPPER; UL LISTED 90 C; 600 V TO 35KV; STUD: 1/2".
• Full Technical Description: Electro-Tin Plated Aluminum Material; Pink Color; 5.02 Inch Overall Length; 2.34 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 500 kcmil Aluminum, 500 kcmil Stranded Copper Conductor Size; 1/2 Inch Stud Size; 300 Die Index; 1.8 Inch W X 0.46 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Wire Strip Length 1/2 Inch; Cable Entry Type Beveled Entry, Chamfered
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810023525
• SKU Name: ya34a7 burndy
