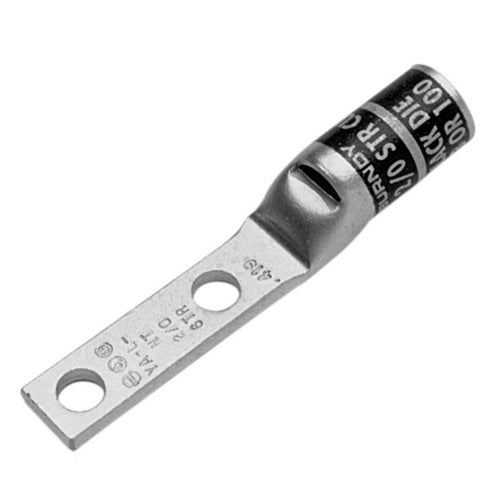

Burndy YA38L2NT38FX Copper HYLUG 500

Overview

Burndy YA38L2NT38FX Copper HYLUG 500

Product Specifications

• UPC: 78181003392
• Pad Size: 1.63 Inch W x 0.27 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Pink
• Die Index: L99
• Material: Electro-Tin Plated Copper
• Overall Length: 4.35 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow
• Catalog Number: YA38L2NT38FX
• Brand Name: HYLUG[TM]
• Model: YA-L-2NTFX
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 1325/24 Diesel Locomotive Cable, 535.3 KCMIL (Flex), 500 KCMIL Class G/H/I (Flex)
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 1.45 Inch
• Catalog Description: 500 KCMIL H,I,K / 550 KCMIL G,H,I,535 DLO CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, NARROW TONGUE, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, L99 DIE INDEX.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 4.35 Inch Overall Length; 1.45 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1325/24 Diesel Locomotive Cable, 535.3 kcmil (Flex), 500 kcmil Class G/H/I (Flex) Conductor Size; 3/8 Inch Stud Size; L99 Die Index; 1.63 Inch W X 0.27 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow; YA-L-2NTFX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810033920
• SKU Name: ya38l2nt38fx burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
