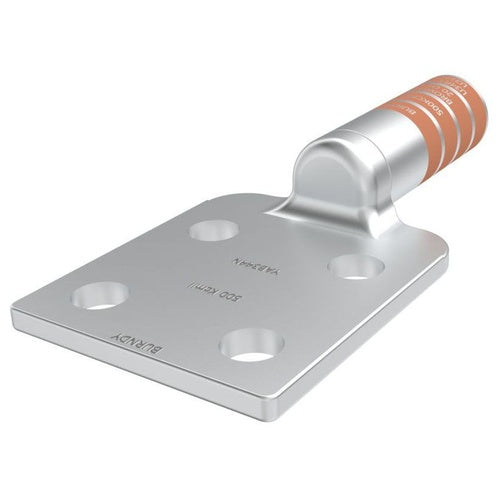

Burndy YAB344N 500 Copper 4-Hole Long 44928

Overview

Burndy YAB344N 500 Copper 4-Hole Long 44928

Product Specifications

• UPC: 78181050689
• Pad Size: 3 INCH W X 0.25 INCH THK
• Number Of Pad Holes: 4
• Pad Hole Spacing: 1.75 INCH
• Stud Size: 1/2 INCH
• Color: BROWN
• Die Index: 20
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 6.33 INCH
• Approval: CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE CHAMFERED; WIRE STRIP LENGTH 2 5/16 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YAB344N
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YAB-4N
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 500 KCMIL SOLID/STRANDED
• Barrel Type: LONG, STANDARD, STRAIGHT
• Barrel Length: 2.25 INCH
• Catalog Description: COPPER COMPRESSION LUG, 4 HOLE W/O INSPECTION WINDOW, 500 KCMIL, 1/2" STUD, 1-3/4" STUD HOLE SPACING, LONG BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 6.33 Inch Overall Length; 2.25 Inch Barrel Length; Copper Conductor Material; CSA Approval; 600 V to 35 kV Voltage Rating; 500 kcmil Solid/Stranded Conductor Size; 1/2 Inch Stud Size; 20 Die Index; 3 Inch W X 0.25 Inch Thk Pad Size; 4 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Chamfered; Wire Strip Length 2 5/16 Inch; Temperature Rating 90 Deg C; YAB-4N Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 781810506899
• SKU Name: yab344n burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
