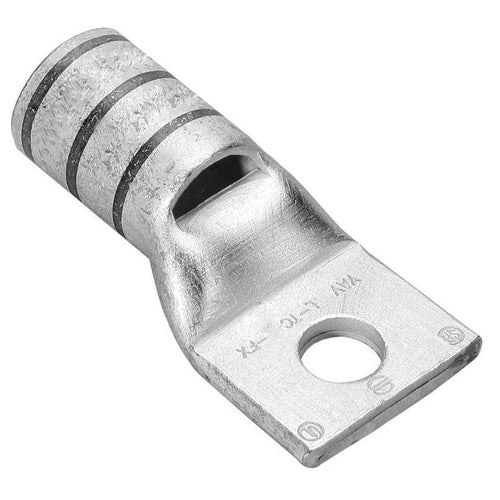

Burndy YAV6CLTC10FX 6Awg Terminal Lug

Overview

Burndy YAV6CLTC10FX 6Awg Terminal Lug

Product Specifications

• Catalog Description: 6 FLEX G,H,I,K,M,DLO, 6 AWG CU, ONE HOLE, #10 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 1.3 Inch Overall Length; 0.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 30 (Navy), 61/24 Diesel Locomotive Cable, 6 AWG Class G/H/I (Weld Flex), 6 AWG Solid/Stranded (Code) Conductor Size; #10 Stud Size; 7 Die Index; 0.48 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1/2 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810022801
• SKU Name: yav6cltc10fx burndy
